Factory bulk sale nema 42 110BLF01 high torque brushless dc motor bldc motor
The advantages of brushless DC motors include long life, little or no maintenance, and high efficiency. The disadvantages are high initial cost, complex motor speed controllers, and other types of DC motors that do not require commutation, including unipolar motors and ball bearing motors. Portability on battery power, high cranking torque, bi-directional operation, designed for variable speed, excellent speed control and unmatched reliability.
Electrical Specification Of Brushless DC Motor
| Product Name: | Brushless Motor |
| Dielectric Strength: | 500V AC 1minute |
| Ambient Temperature: | -20℃~50℃ |
| Insulation resistance: | 100MΩ Min.500V DC |
| Hall effect angle: | 120° electrical angle |
| Voltage(VDC): | 310(VDC) |
| Power(W): | 1100 |
| Rated Speed(RPM): | 3000 |
| Rated torque(N.M): | 3.5 |

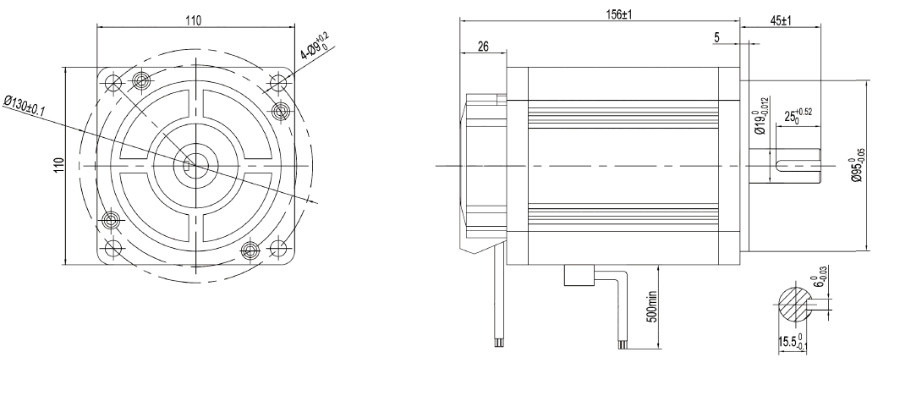

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
CNC Center Of Hetai
Packing&Delivery
Product Tags:
|
|
Nema 42 110BLF01 High Torque Brushless Dc Motor Bldc Motor Images
|
